Ramp Focal Gauge for Laser Machines

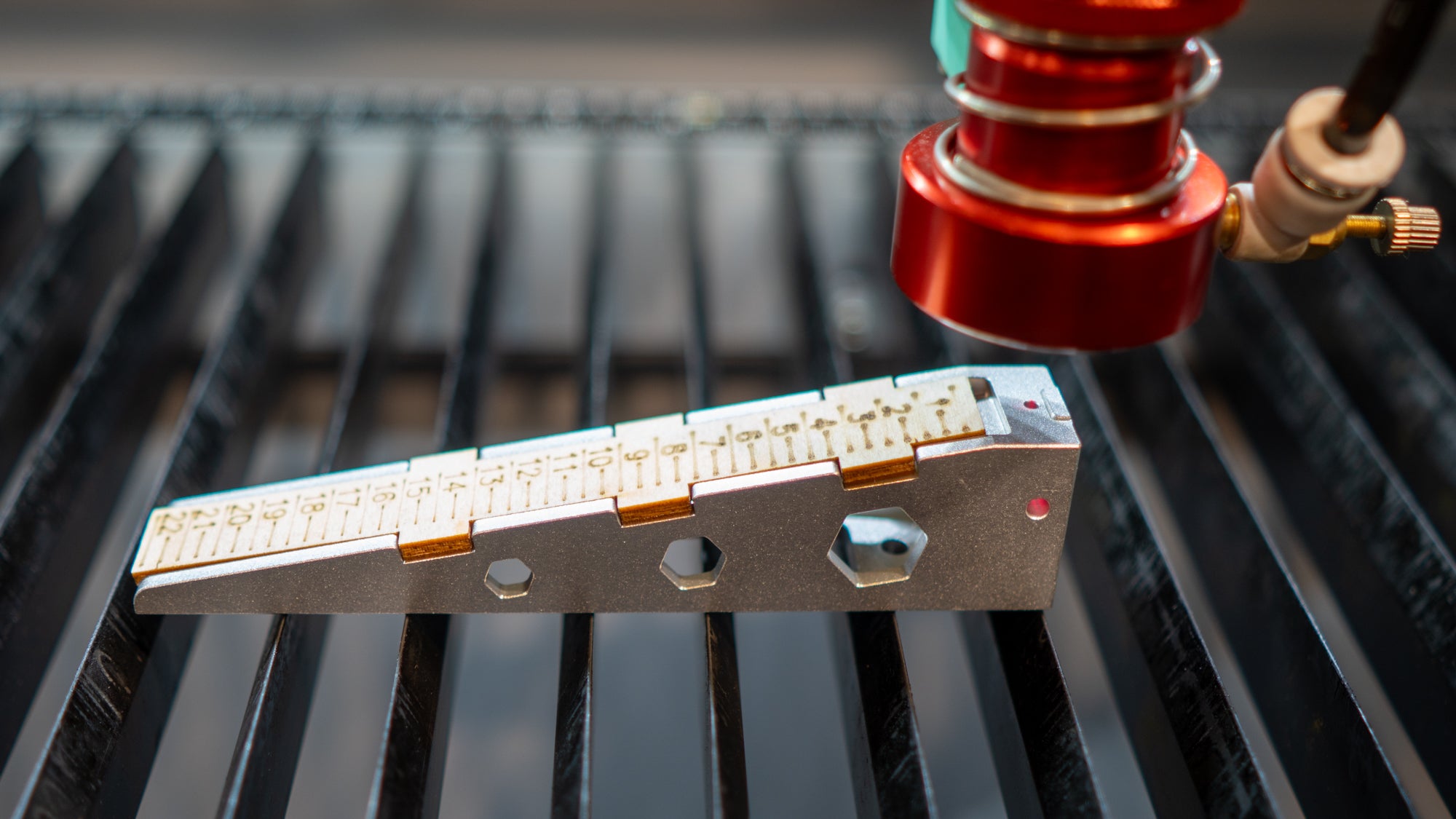

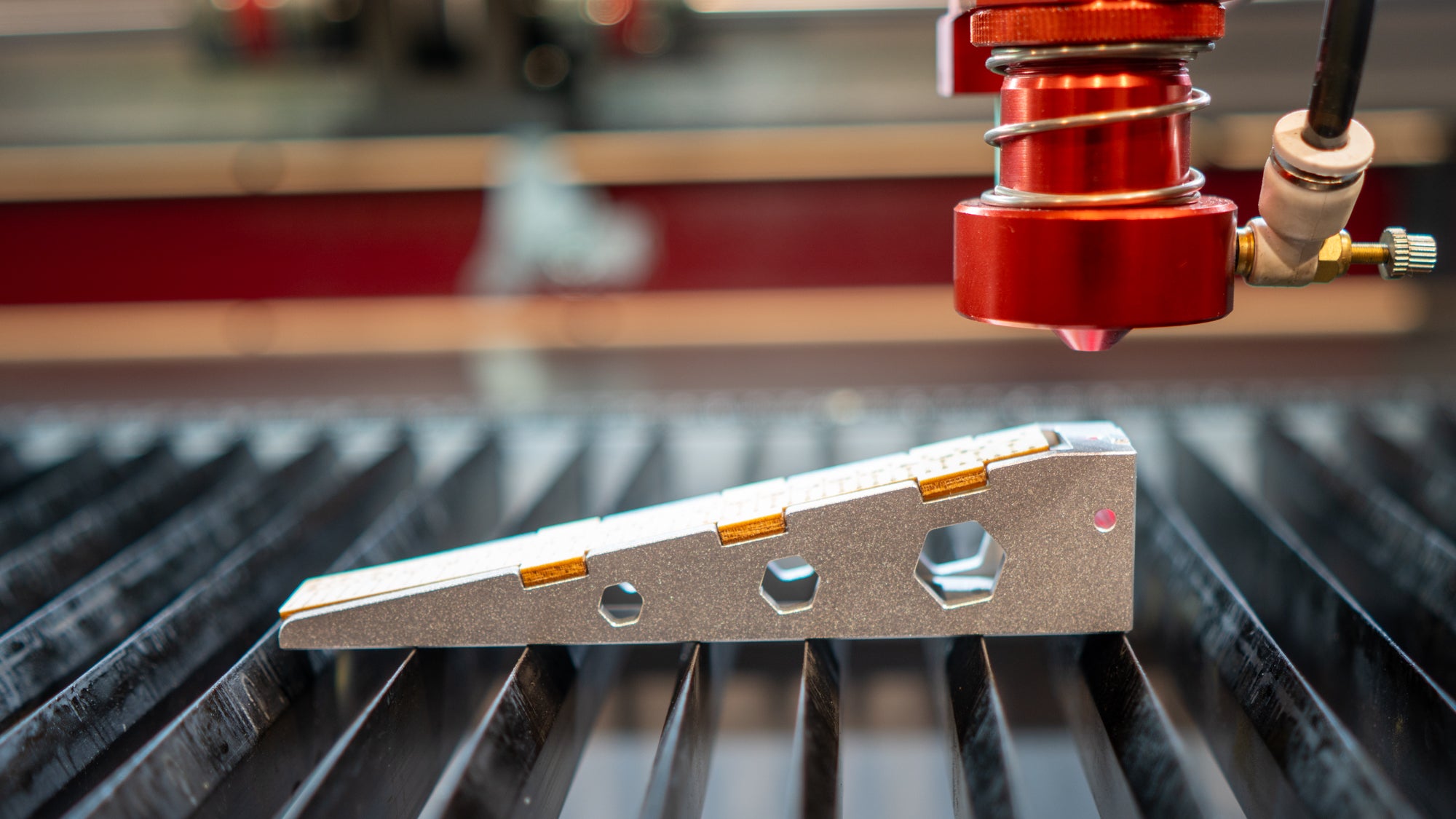

We developed this useful focal gauge which will help you determine the optimal distance from your laser nozzle to the material. Results will show up as clear numbers, so there is no need to guess, use calipers or rulers. The process is quick and simple, based on the "ramp test", but with higher precision and less effort.

As of 11/23/2021 we've upgraded to our Ramp Gauge to 6061 Aluminum Alloy. We also include powder coated metal manual focal gauge with all purchases!

Detailed manual included as well as instructional video:

https://youtu.be/-HbnJ-NrSzs

What's included:

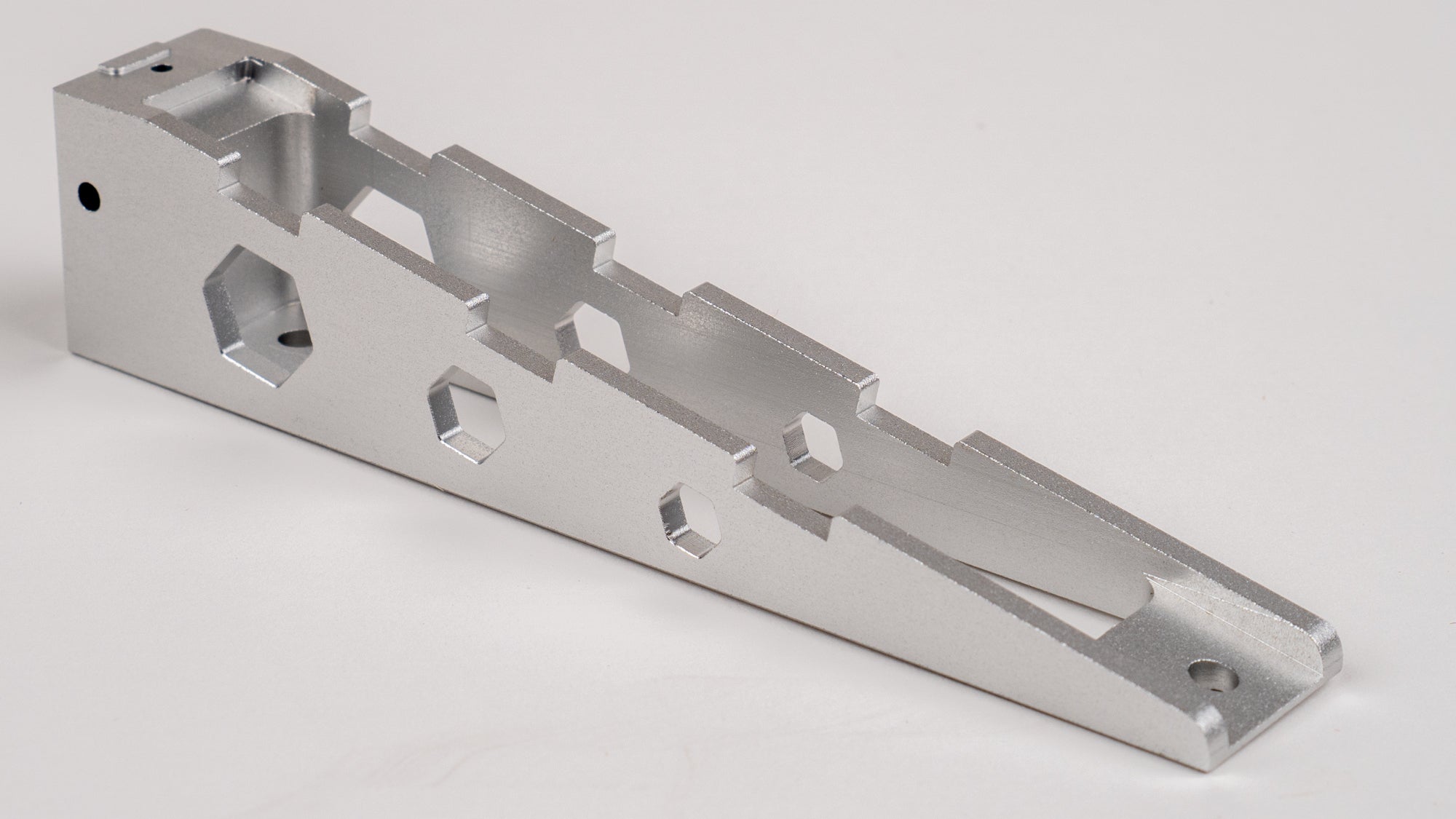

• CNC Machined Focal Gauge

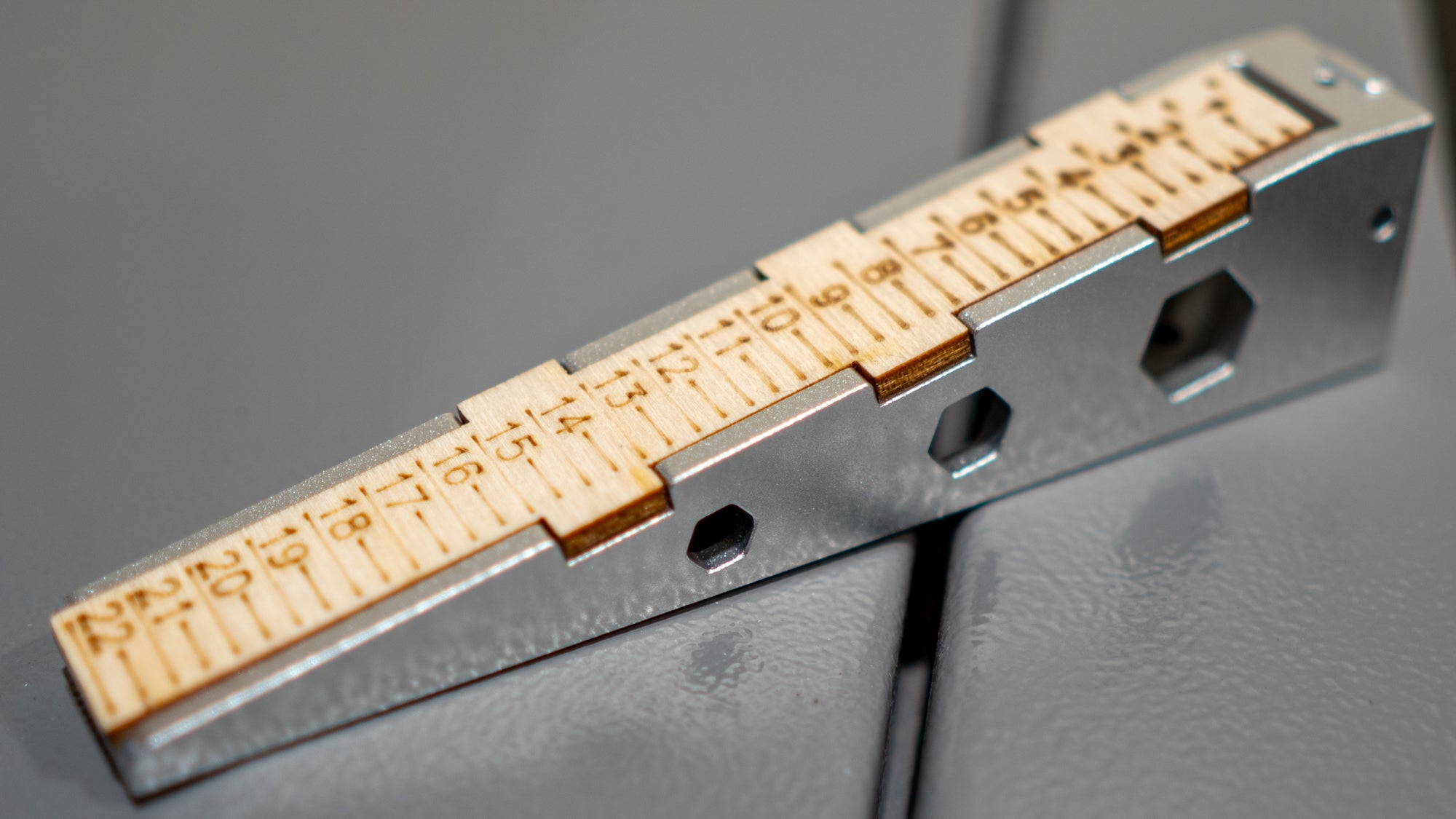

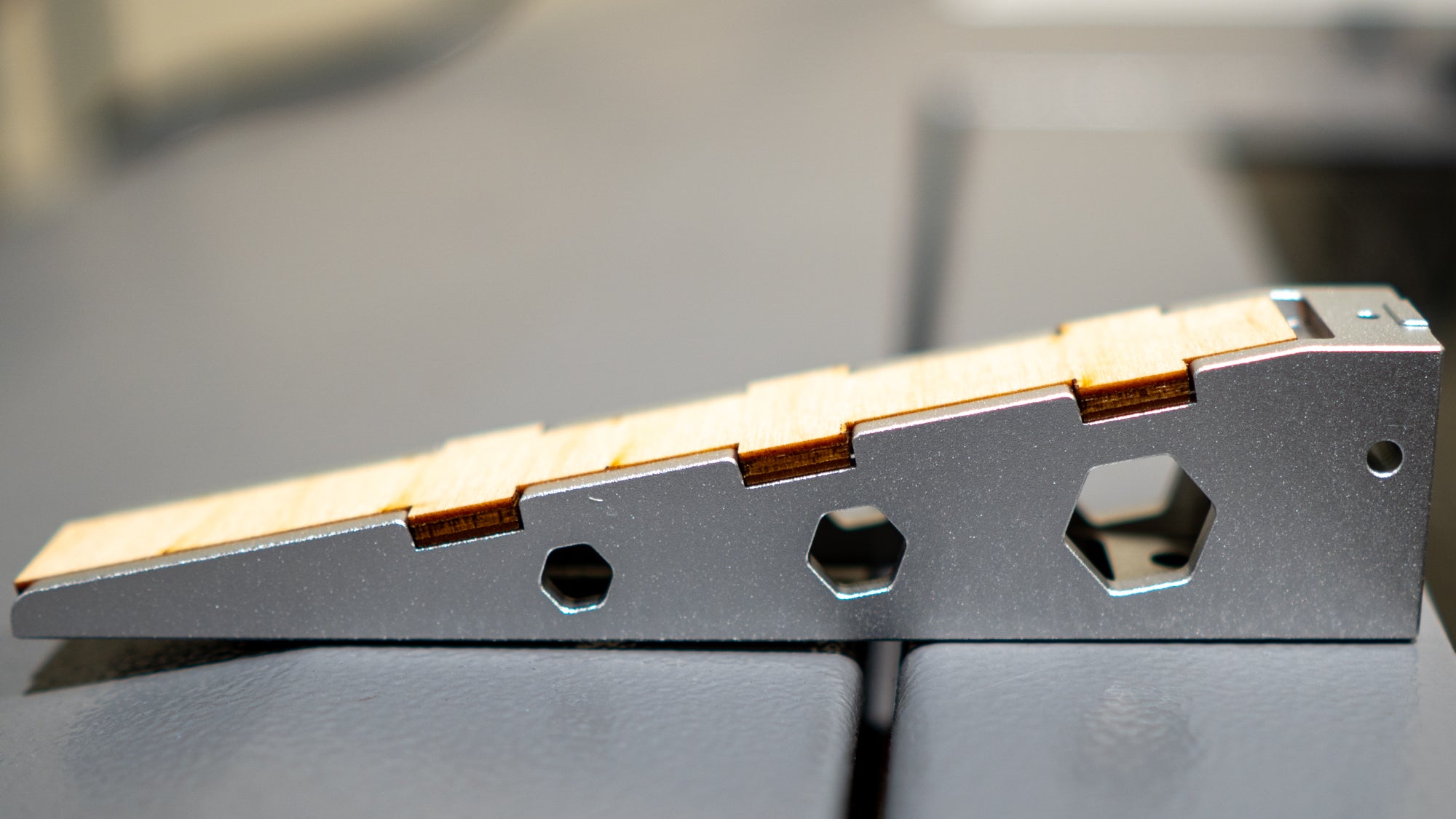

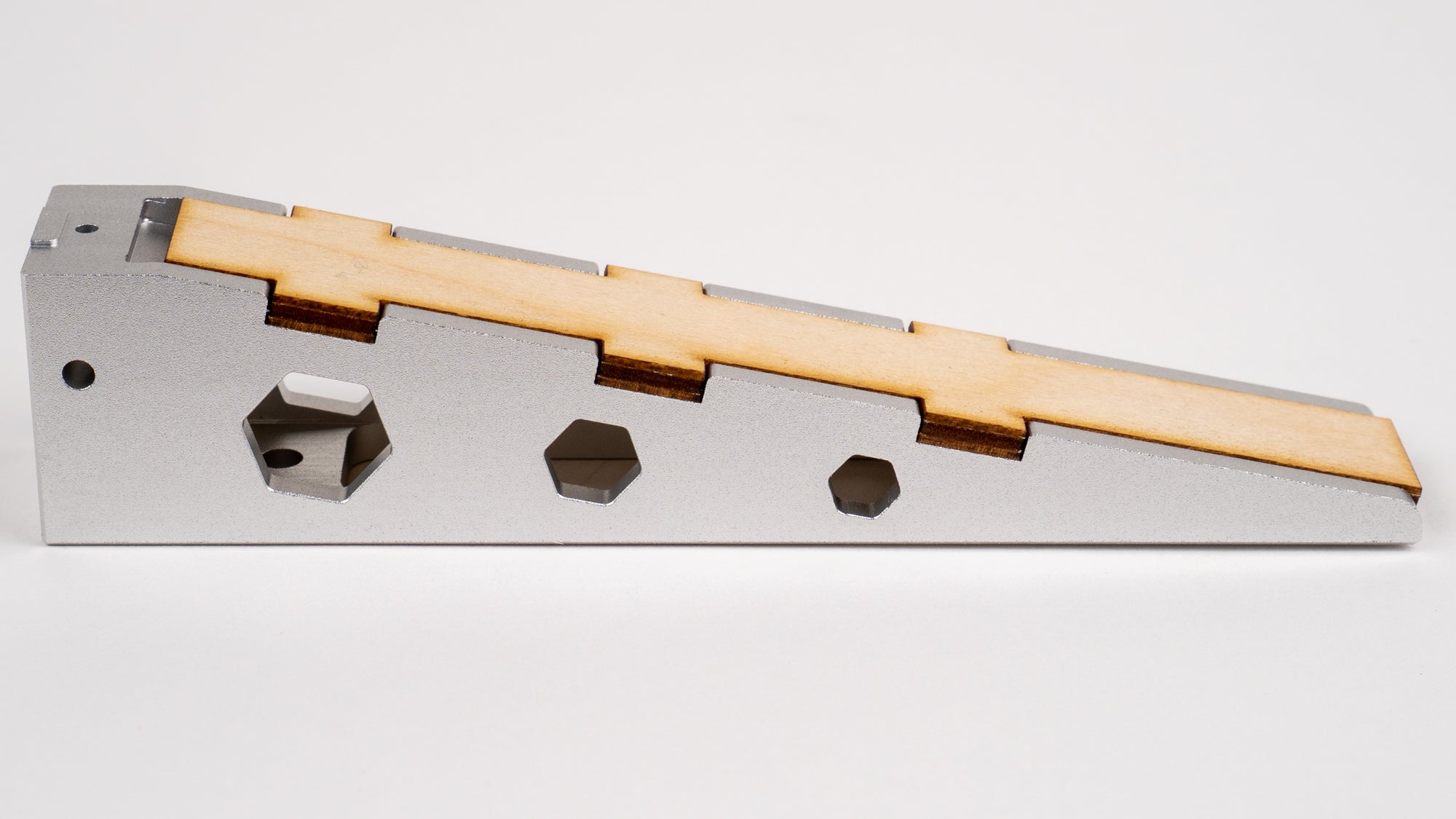

• 5x wooden inserts. Each can be used twice, but we provide a template so you can easily cut as many as you like from 1/8" plywood.

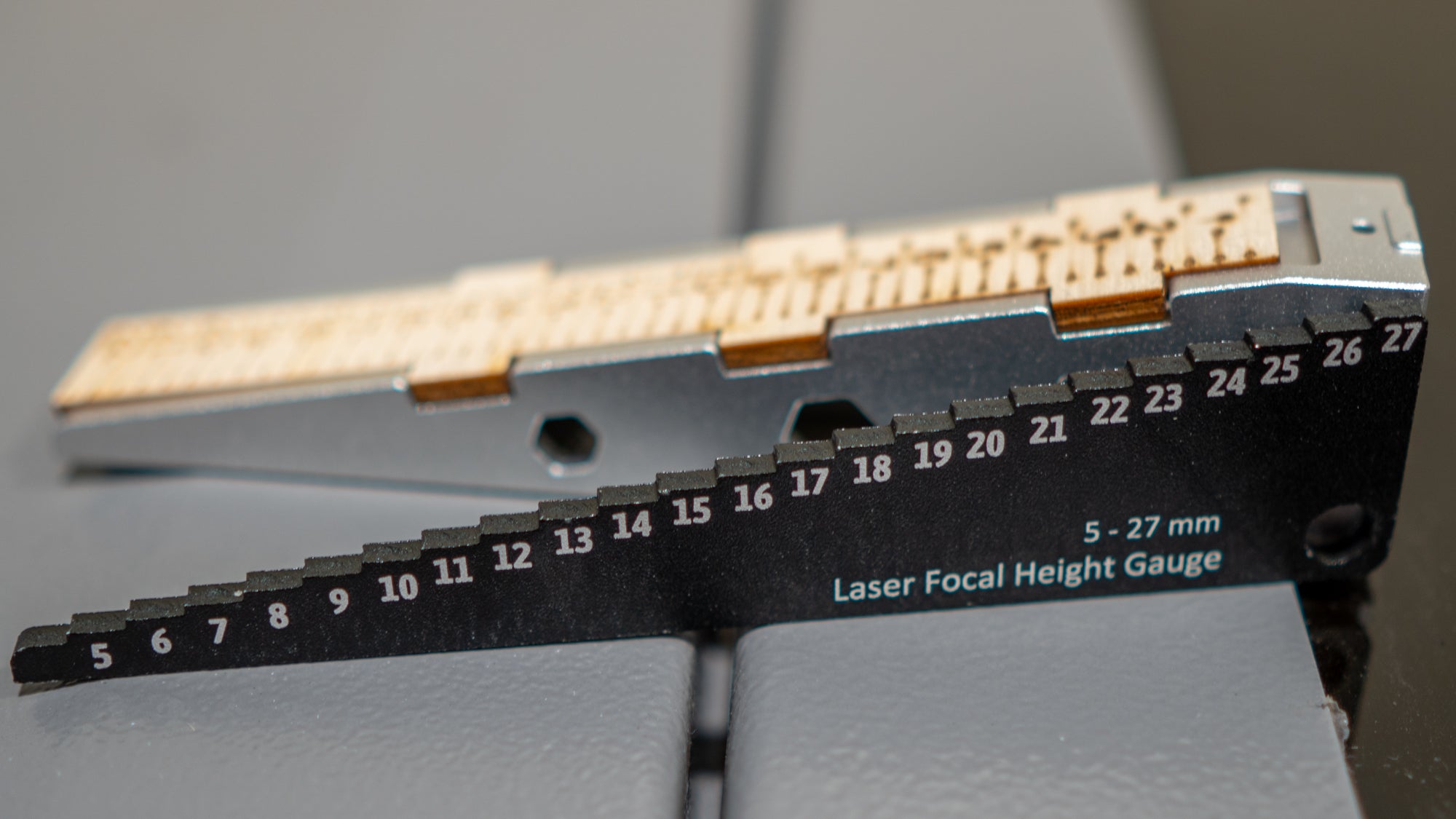

• Metal manual focal gauge
• Downloadable Templates (RDWorks project, DXF file)
• PDF Manual

Extra Inserts sold separately if you need them.

Please note:

Link to template and documentation is included on the insert leaflet inside the box.
